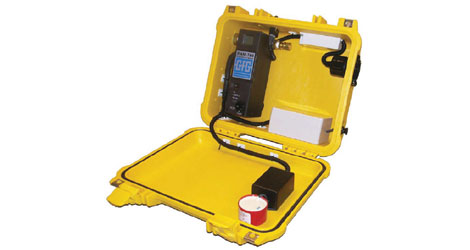

GfG RAM 744-X AutoCal Portable Remote Compressed Air Detector

Portable Remote Compressed Air Detector

The GfG RAM 744-X remote monitor is a rugged and compact monitor for the detection of CO in compressed breathing air. It is the ideal monitor for portable applications where space is limited or where the environment is harsh. With a standard high pressure (120 psi) fitting on the inlet, it is easy to connect to virtually any air filtration system.

The RAM 744-X automatically adjusts the flow rate so there are no touchy flow meters to adjust.Calibration and maintenance are made simple with our innovative AutoCal® system which allows automatic calibration with the turn of a dial. The alarm level is set at 10 ppm by default; however, it may be specified at 5 ppm. Any GfG Instrumentation RAM instrument can be custom-configured to meet the needs of the end user’s exact specifications.

  • Continous in-line CO detector
  • Low pressure alarm
  • Rugged and watertight design
  • Loud audible alarm
  • 5 or 10 ppm alarm (please specify)
  • 200 hour run-time (no alarms)
  • 40 hour run-time (in alarm)
