Volatile Organic Compounds

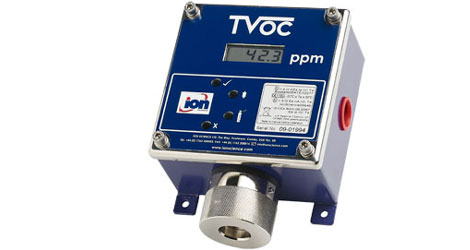

TVOC

Fixed PID Detector for Continuous VOC Detection

TVOC is a fixed photoionisation detector (PID) designed for continuous measurement of total volatile organic compounds (VOCs). New ATEX approvals enable a 3 wire TVOC system to be used in Zone 2 hazardous areas, without safety barriers. ATEX and IECEx approvals allow TVOC to be used in Zone 1 hazardous areas, with safety barriers.

  • Independently verified as best performing PID technology
  • Patented Fence Electrode Technology for fast, accurate humidity resistant operation
  • ATEX: Zone 2 hazardous areas without safety barriers (3 wire option)
  • ATEX & IECEx: Zone 1 hazardous areas with safety barriers (4 wire option)
  • 3 wire option allows direct replacement of an existing PID area monitor (Zone 2 ATEX)
  • Selectable detection range of 0 - 10 ppm, 0 - 100 ppm or 0 - 1000 ppm
  • Diffusive monitoring - no pump required
  • Scaled 4-20 mA analogue output
  • Includes a 10.6 eV lamp
  • Easy access PID sensor allows simple servicing
  • Simple calibration procedure

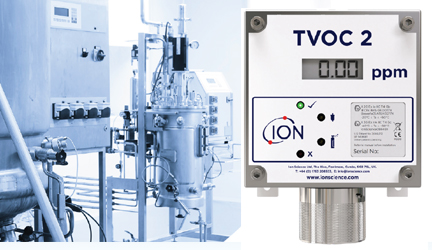

TVOC 2

FIXED PID MONITOR FOR VOLATILE ORGANIC COMPOUNDS.

TVOC 2 is a fixed photoionisation detector (PID) for the continuous measurement of total volatile organic compounds (VOCs). TVOC 2 can accurately measure three detection ranges.

TVOC 2 continually measures and updates the output every second.

TVOC 2 utilises a diffusive sample technique resulting in less contamination issues compared to pumped systems, reducing lamp cleaning and servicing requirements. The 4-20 mA analogue output enables TVOC to be integrated into a DCS control system to give warning or control of high VOC levels in the working environment.
